MRYT-1805 Rotary Dimmer Wall Transmitter

Automated Home Solutions

MRYT-1805 Rotary Dimmer Wall Transmitter

Inquire for Distribution


ABOUT BRAND

Precision Analog Tactility, Surface-Mount Versatility & Low-Profile Wireless Dimming

Product Description

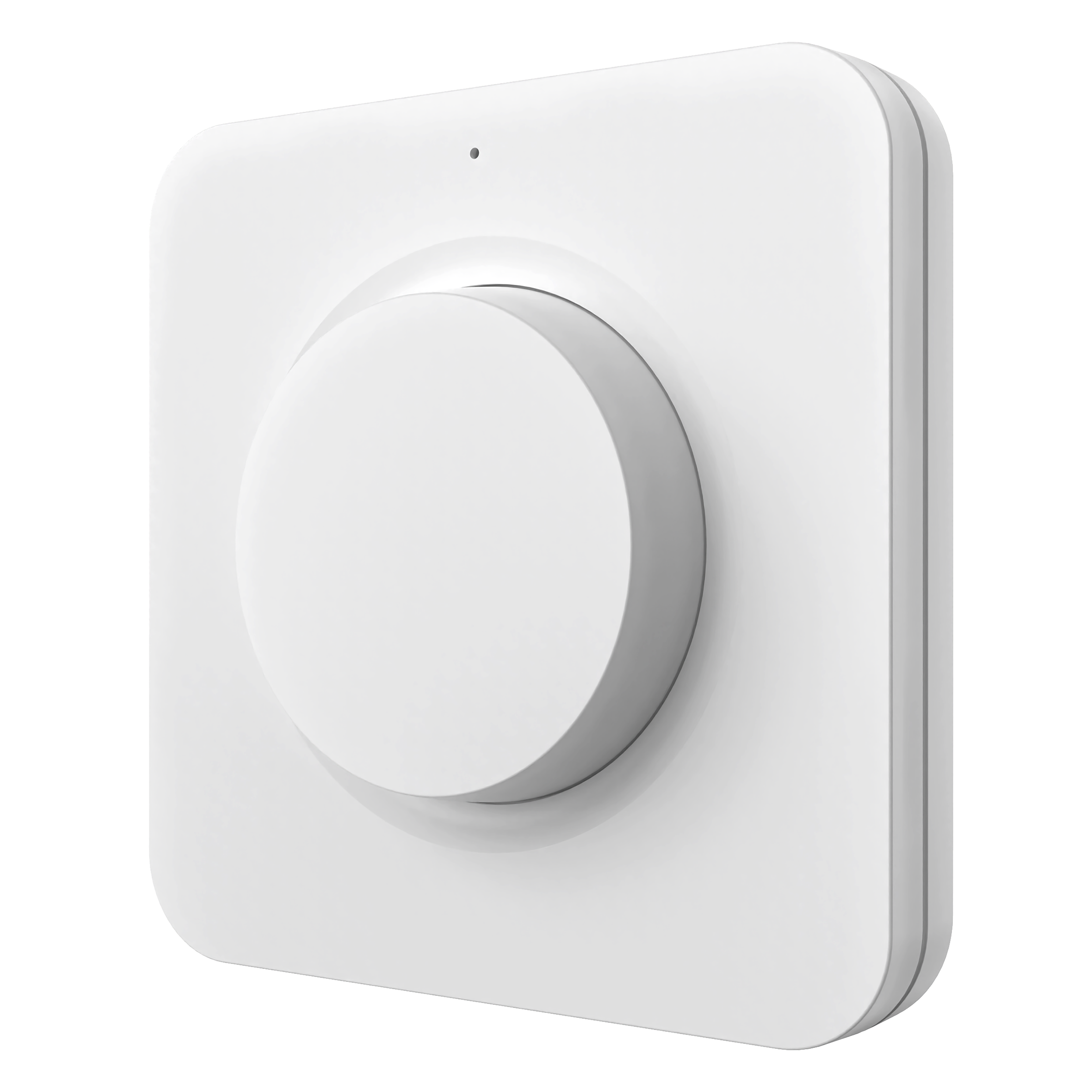

The MRYT-1805 Rotary Dimmer Wall Transmitter provides precise wireless lighting control through an elegant rotary knob combined with convenient push-button operation. Using 433.92MHz RF wireless communication, it communicates with compatible ARC RF433 dimmer receivers to deliver smooth brightness adjustment and reliable ON/OFF switching without requiring electrical wiring.

Installation is fast and flexible using either the supplied screws or double-sided adhesive tape, allowing the transmitter to be mounted on a standard electrical wall box or directly onto a flat wall surface. Powered by a CR2032 lithium battery, the transmitter eliminates the need for mains power while maintaining dependable long-term operation.

The unit supports two selectable dimming modes: step dimming for universal compatibility with dimmable receivers, and continuous dimming for compatible M-series receivers. Its clean, minimalist design makes it suitable for homes, hotels, offices and commercial smart lighting installations.

Key Features

•
  Model Number: MRYT-1805
•
  RF433 (433.92MHz) wireless communication
•
  Rotary dimmer wall transmitter
•
  Push ON/OFF switching
•
  Smooth rotary dimming control
•
  Compatible with ARC RF433 dimmer receivers
•
  Controls compatible ON/OFF receivers
•
  Battery-powered operation
•
  Surface or wall-box installation
•
  Screw or adhesive mounting
•
  Two selectable dimming modes
•
  No mains wiring required
•
  Modern Scandinavian design
•
  Residential, hospitality and commercial applications

Inquire for Distribution

Technical Details

The MRYT-1805 is a battery-powered RF433 wireless wall transmitter designed to provide intelligent dimming and switching control for compatible ARC RF433 lighting receivers.

Device identification

•
  Device Name: Rotary Dimmer Wall Transmitter
•
  Model: MRYT-1805
•
  Wireless Communication: RF433 (433.92MHz)
•
  Power Supply: 1 × CR2032 Lithium Battery
•
  Control Methods: Rotary dimming and push ON/OFF switching
•
  Installation: Surface mounting or electrical wall box
•
  Application: Wireless lighting control and dimming

Inquire for Distribution

Technical Specifications

Product Performance Characteristics

Reliable RF433 Wireless Communication

Operates using 433.92MHz RF wireless technology, providing dependable communication with compatible ARC RF433 receivers over an indoor operating range of up to 30 metres, depending on surrounding building materials and environmental conditions.

Rotary & Push Dimming Control

Combines a rotary dimming knob with push-button ON/OFF operation, allowing users to adjust lighting brightness smoothly while maintaining intuitive everyday control.

Easy Wireless Installation

Battery-powered operation eliminates the need for mains wiring. The transmitter can be installed using the supplied screws or double-sided adhesive tape on a wall or standard switch box.

Two Dimming Modes

Supports two operating modes:

• Position 1: Step dimming compatible with most dimmable receivers.
• Position 2: Continuous dimming for compatible M-series receivers.

This provides greater compatibility across different ARC RF433 lighting installations.

Electrical & Physical Specifications

• Wireless Frequency: 433.92MHz
• Power Supply: 1 × CR2032 Lithium Battery
• Wireless Range: Up to 30 metres (indoor)
• Operating Temperature: -10°C to +35°C
• Protection Rating: IP20 (Indoor Use)
• Dimensions: 80 × 80 × 20 mm

Professional Engineering

Designed for OEM manufacturers, electrical contractors and smart home professionals requiring dependable RF433 wireless dimming control for residential, hospitality and commercial lighting automation systems.
